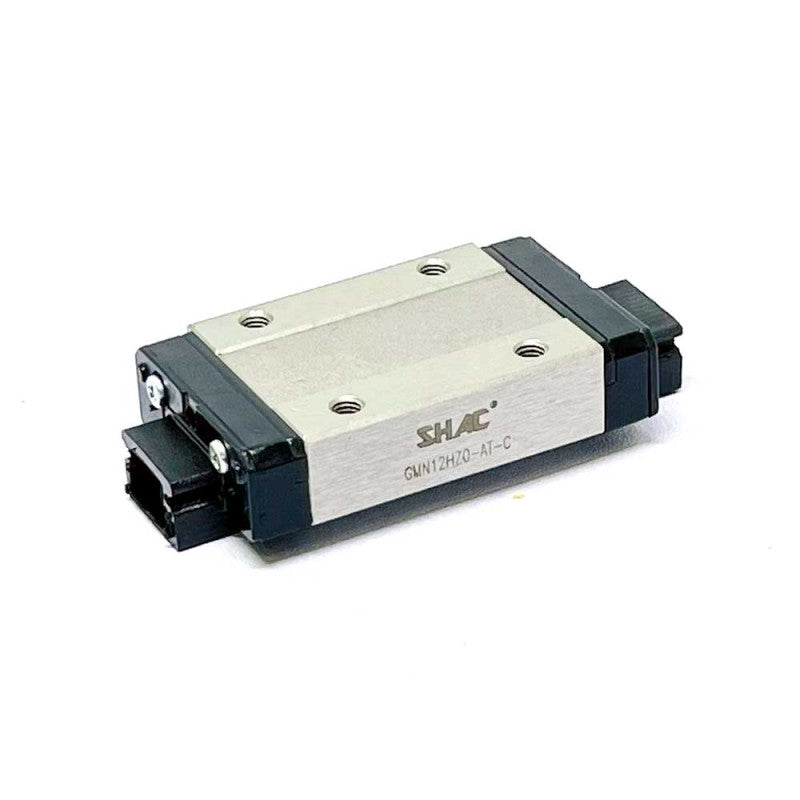

SHAC GMN 12H Miniature Linear Guide Block (MGN 12H)
The SHAC GMN 12H miniature linear guide block is the long-body version of the GMN 12 series, matching the MGN 12H pattern used by other brands. It runs on SHAC GMN 12 rails and offers higher load capacity and rigidity than the C version while keeping a very low overall height. SHAC is produced in China but engineered to compete with Taiwanese miniature linear guides, giving a premium upgrade over standard Chinese products. Abdul Traders is the sole SHAC distributor in Pakistan.
Key Features
Long-type GMN 12H carriage for compact axes that still need higher stiffness and better moment capacity. The block provides very stable, smooth motion compared with short mini blocks. For Pakistani CNC and automation users, SHAC delivers Taiwan-level performance at a price that offers strong money-to-value compared with imported Taiwanese brands.
Technical Specifications

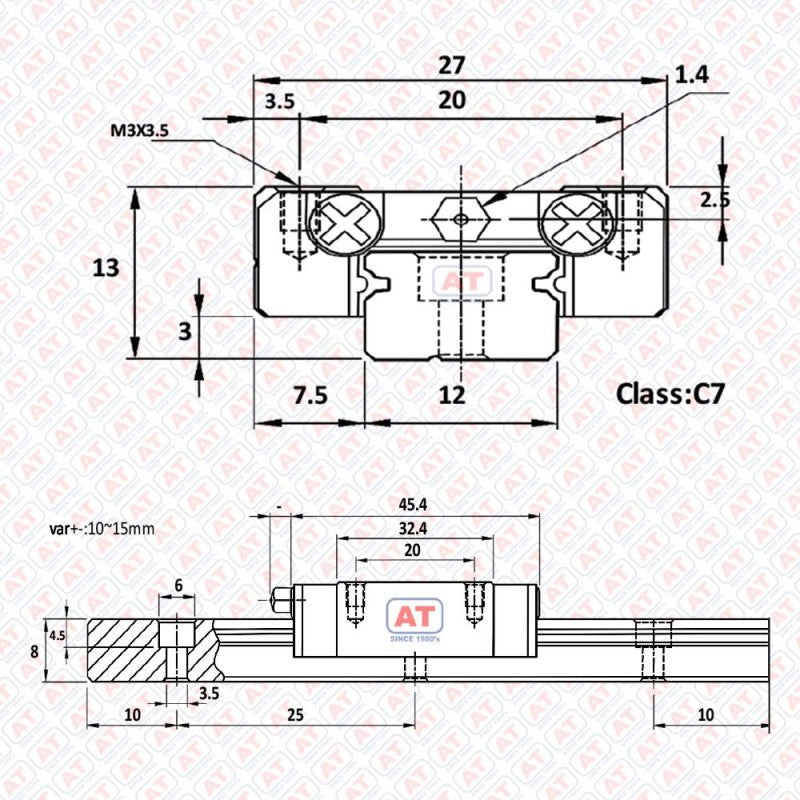

GMN 12H (also known as MGN 12H) SHAC is a recirculating ball linear guide block for GMN 12 rails. It uses the H long body style with mounting dimensions equivalent to MGN 12H, and includes end seals to protect the raceways. When combined with original SHAC GMN 12 rails, it forms a compact yet rigid miniature linear guideway for CNC and automation equipment in Pakistan.
Industrial Applications
Used on small CNC routers, electronics assembly machines, inspection stages, and automation fixtures that require GMN 12 carriages with higher load capacity. Preferred by OEMs and maintenance teams in Lahore, Karachi, Faisalabad, and other industrial cities who rely on SHAC's Taiwan-grade performance supplied by Abdul Traders.
Contact Information
WhatsApp: +86 183 0611 5059
Phone: 042-37653390 | 042-37651231
Website: abdultraders.pk
Rely on Abdul Traders for original SHAC GMN 12H (MGN 12H) long miniature guide blocks in Pakistan.
